Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of v bottom window-shaped paper bag machine in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved v bottom window-shaped paper bag machine, welcome to get quotation from our factory.

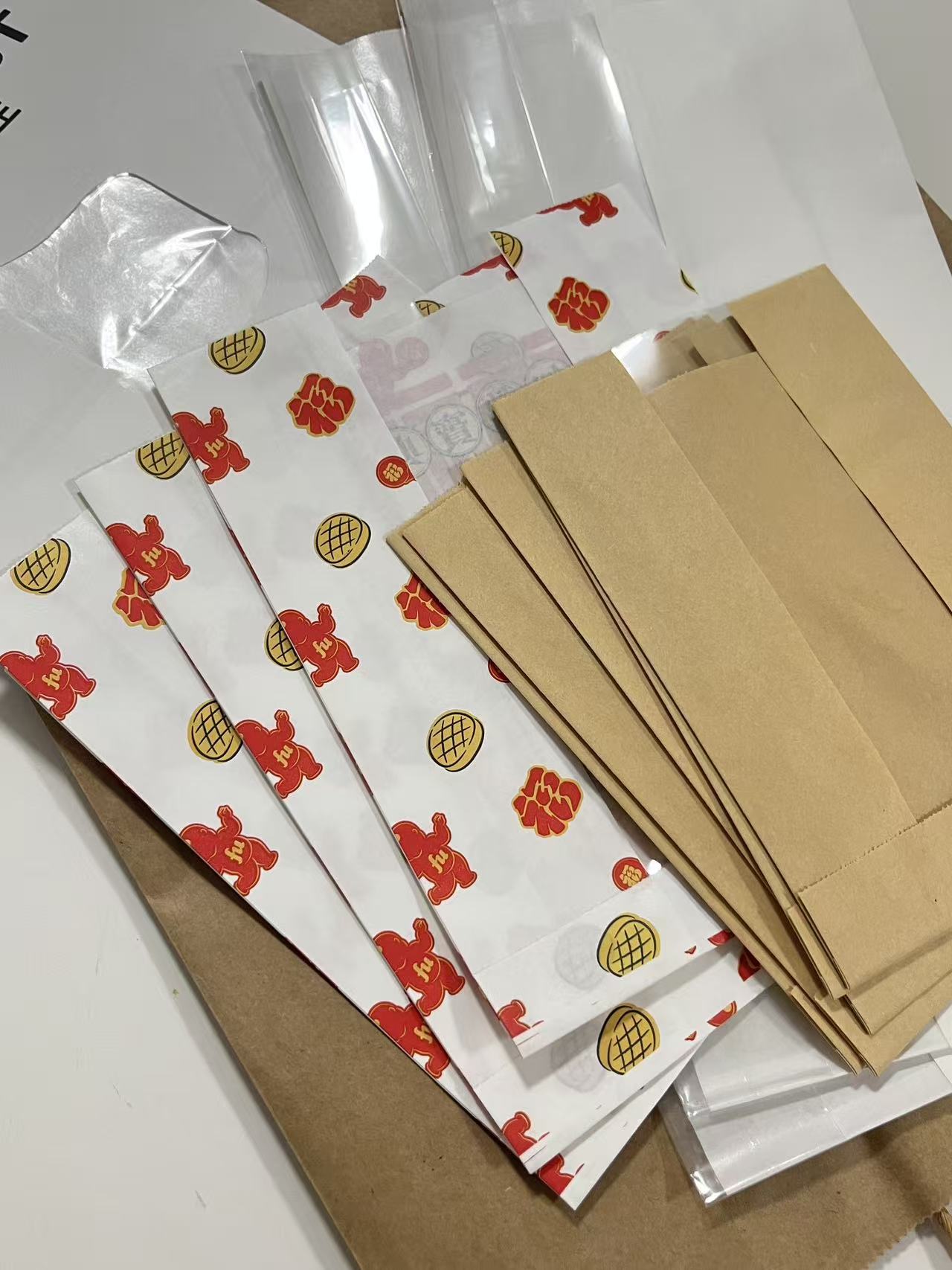

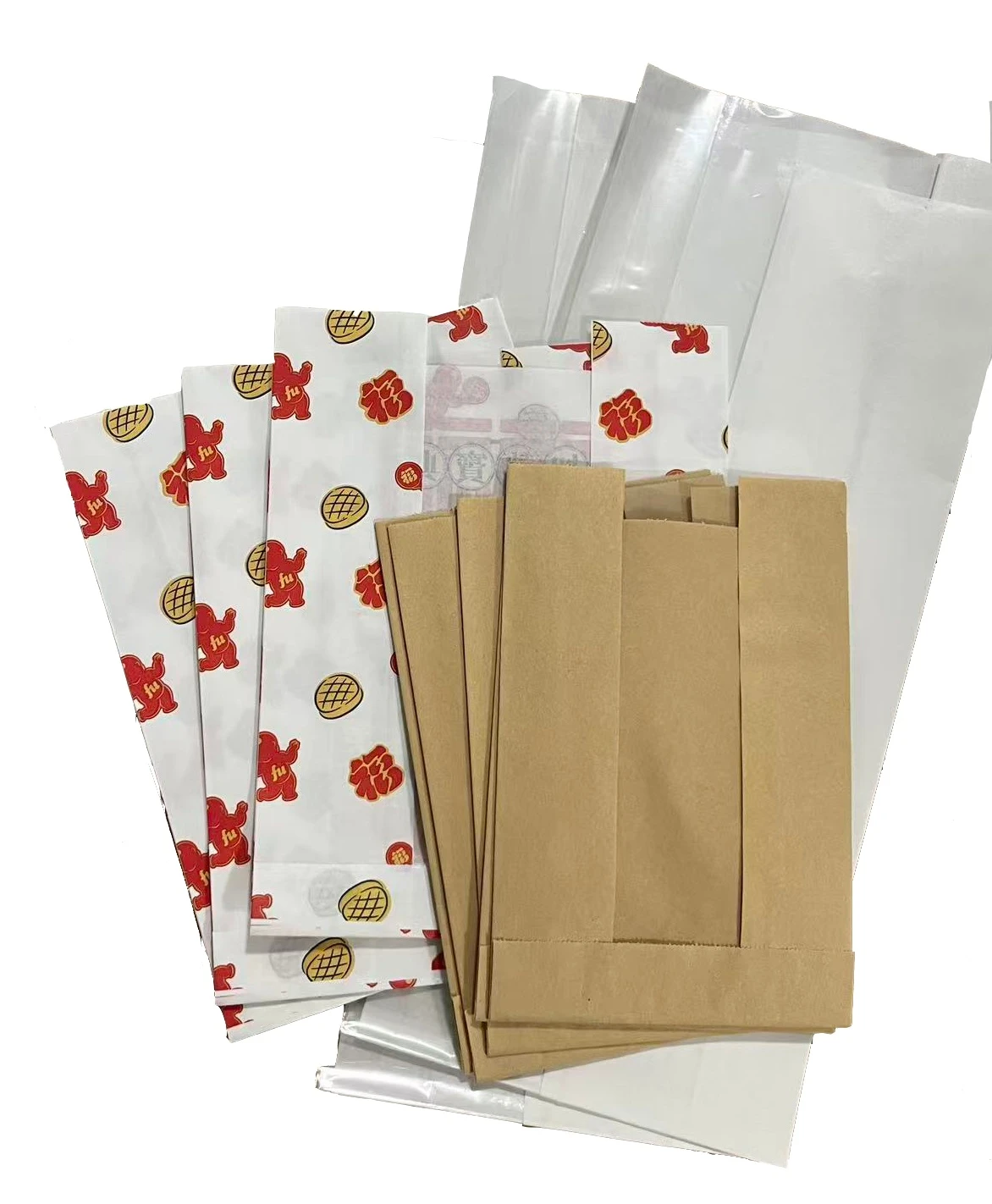

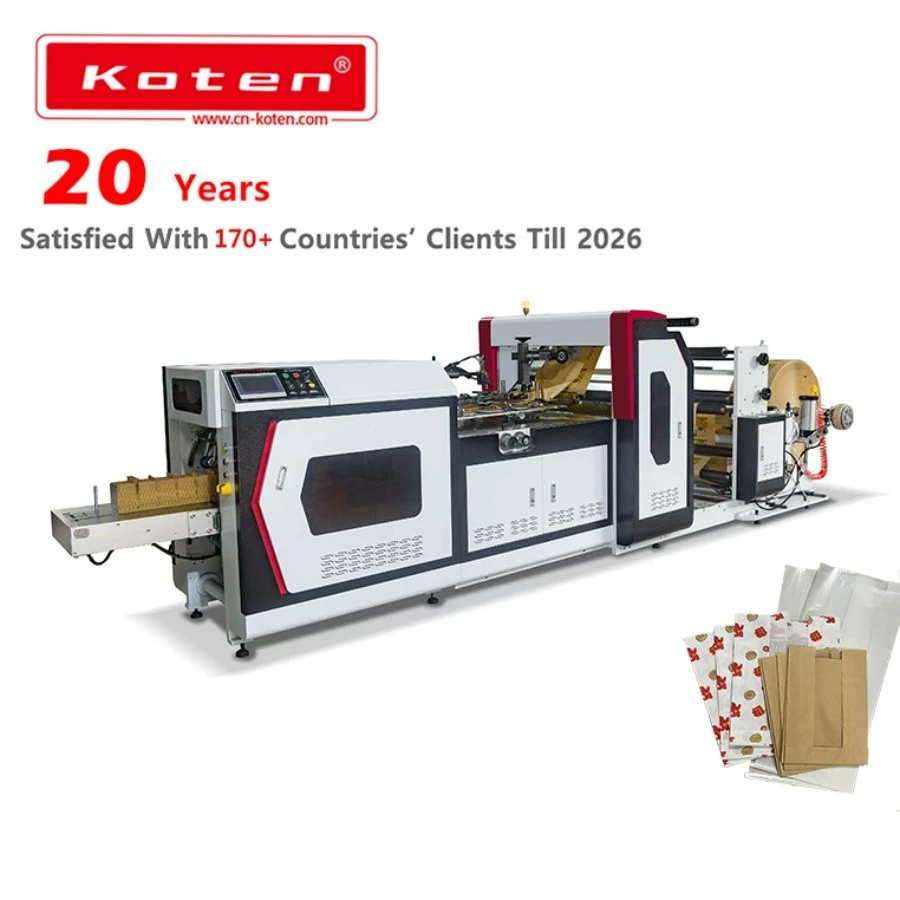

KT-JD250 window pointed bottom paper bag machine is fully servo-controlled automatic equipment from Koten Machinery. It processes kraft paper, medical paper and printed roll paper, completing film lamination, perforation, gluing, forming, cutting, bottom sealing and counting automatically. With compact structure and touch screen operation, it produces transparent window food bags, bread bags, medical bags and eco-friendly shopping bags at high speed.
Products Description
Main Parameters
|
Item: KT-JD250_window |
|
|
|
Model |
KT-JD250 |
|
|
Cutting Length (L) |
120-415 mm |
|
|
Bag Length (C) |
110-405 mm |
|
|
Bag Width (W) |
70-250 mm |
|
|
Gusset Thickness (H) |
0-120 mm |
|
|
Standard Flap (P) |
17 mm |
|
|
Paper Thickness |
30-80 g/㎡ |
|
|
Paper Roll Width |
160-760 mm |
|
|
Max.Roll Diameter |
120-415 mm |
|
|
Reel Inner Diameter |
110-405 mm |
|
|
Pasted With Film |
YES |
|
|
Film Thickness |
0.03-0.05 mm |
|
|
Film Width |
50-210 mm |
|
|
The Max Film Diameter |
500 mm |
|
|
Film Inner Diameter |
76 mm |
|
|
Speed |
100-600 pcs/min |
|
|
Working Gas |
≥0.12 m³/min 0.5-0.8 mpa |
|
|
Total Power |
380V 3phase 4line 12KW |
|
|
Total Weigth |
3500KG |
|
|
Machine Dimensions |
5850*1600*1450mm |
|
|
Pasted With Film |
YES |
|
|
Film Thickness |
0.03-0.05 mm |
Application
Company Profile
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
