Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of roll to sheet paper cutting machine in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved roll to sheet paper cutting machine, welcome to get quotation from our factory.

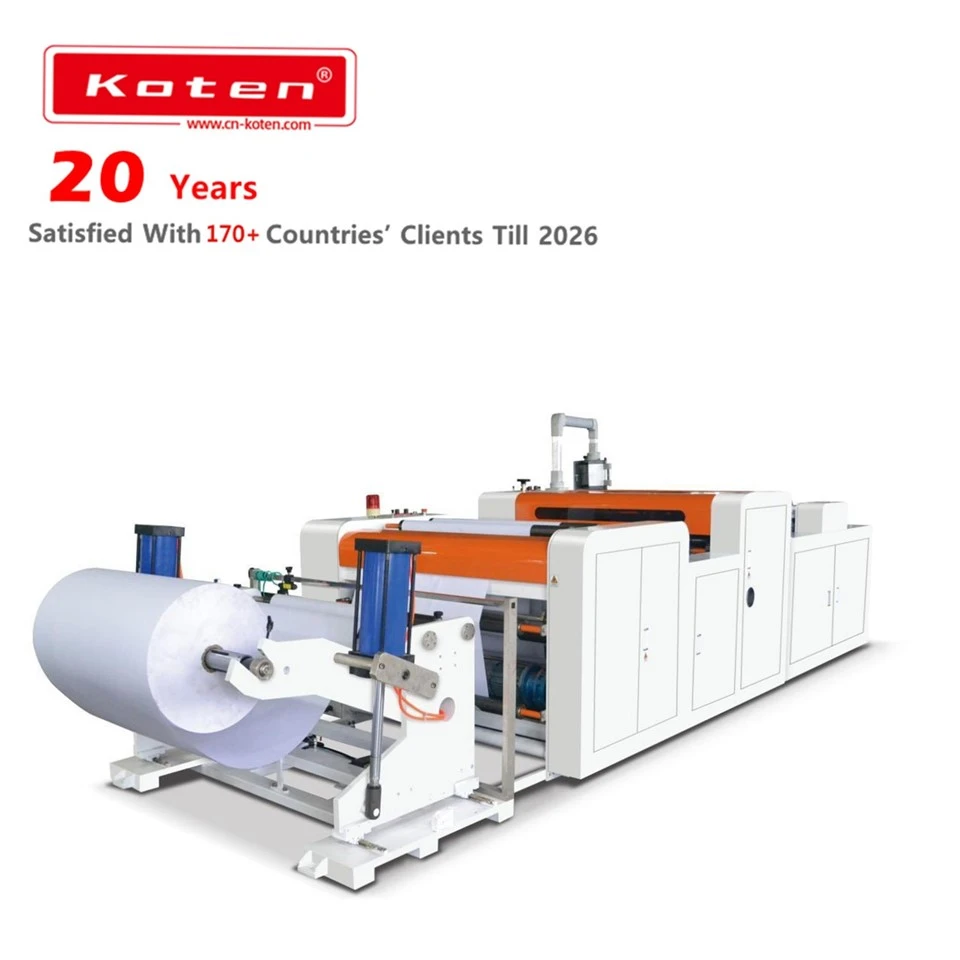

Roll To Sheet Paper Cutting Machine is a precise converting machine for printing and packaging industries. This Roll To Sheet Paper Cutting Machine features horizontal and vertical cutting to turn paper and PVC rolls into A4, A3, A2 or custom-size sheets.
It supports single, double or four unwinding rolls to raise production efficiency. Fitted with constant tension control and sharp cutting blades, the Roll To Sheet Paper Cutting Machine delivers smooth, wrinkle-free sheets without stretching. Versatile and stable, it suits both mass standard paper production and small-batch custom sheet processing.
Products Description
Products Feature
1. This professional roll to sheet cutting machine can complete horizontal cross cutting and vertical edge trimming in one pass, converting jumbo paper rolls into standard or custom-sized finished sheets with high accuracy.
2. It supports flexible unwinding configuration with single, double or four-roll structures. The multi-roll design reduces roll replacement downtime and greatly improves continuous production efficiency for mass processing.
3. The machine features strong material compatibility, stably cutting cultural paper, coated paper, kraft paper, PVC rolls and composite film materials to meet diversified processing demands.
4. Equipped with constant tension control system, it effectively prevents paper stretching, wrinkling and edge unevenness during high-speed running, ensuring stable cutting quality.
5. Adopts precision servo control system to support free setting of cutting dimensions, realizing flexible production of both standard A-series sizes and special non-standard sheet sizes.
6. The whole machine balances high precision, stable operation and high production speed, suitable for both small-batch customized production and large-volume standardized manufacturing.
Main Parameters
|
Model |
HQJ-1100D |
HQJ-1400D |
|
Max diameter of material |
Φ1200mm |
Φ1200mm |
|
Max. width of cutting |
1100mm |
1400mm |
|
Length of cutting |
20-1200mm |
20-1200mm |
|
Paper GSM range |
15gsm-600gsm |
15gsm-600gsm |
|
Precision of fixed length |
±0.2mm |
±0.2mm |
|
Speed Max |
140times/min |
140times/min |
|
Total Power |
11kw |
11kw |
|
Weight (approx.) |
4300kg |
4500kg |
|
Overall dimension(LxWxH) |
5000×1800×1200 |
5000×2100×1200 |
Application
Company Profile
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
