Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of a4 paper cutting and packing machine in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved a4 paper cutting and packing machine, welcome to get quotation from our factory.

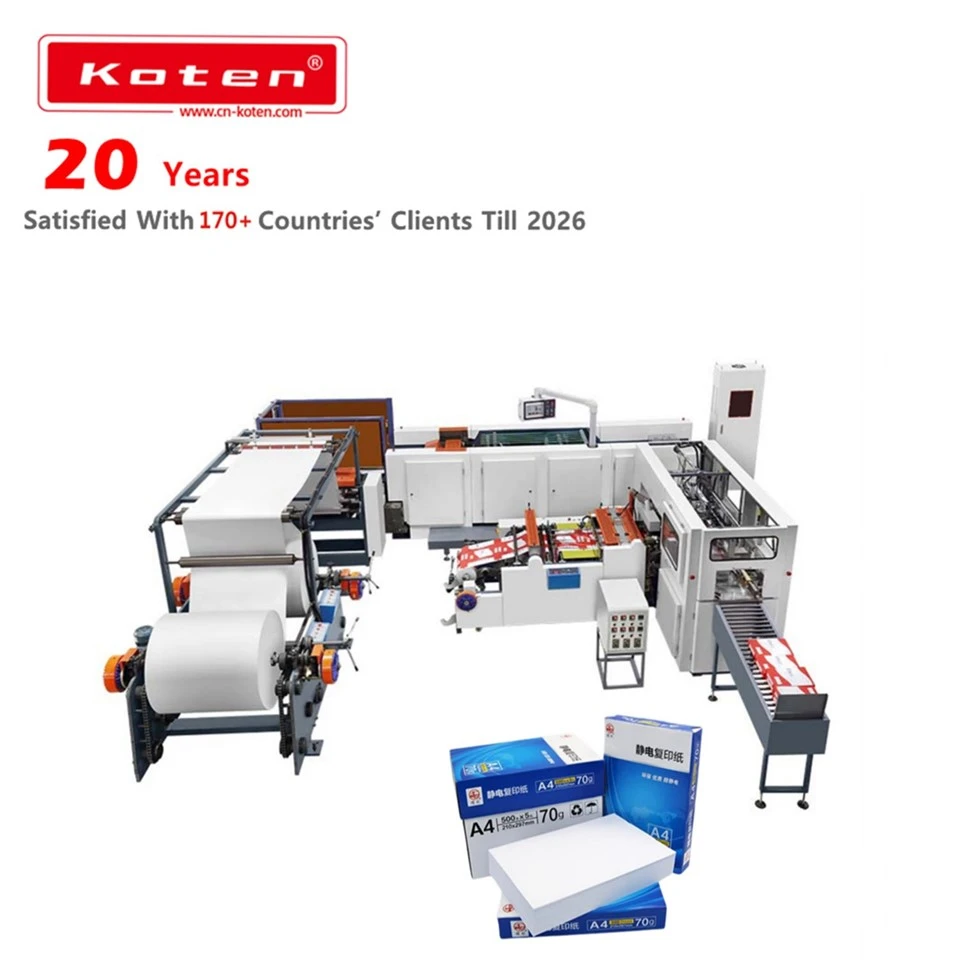

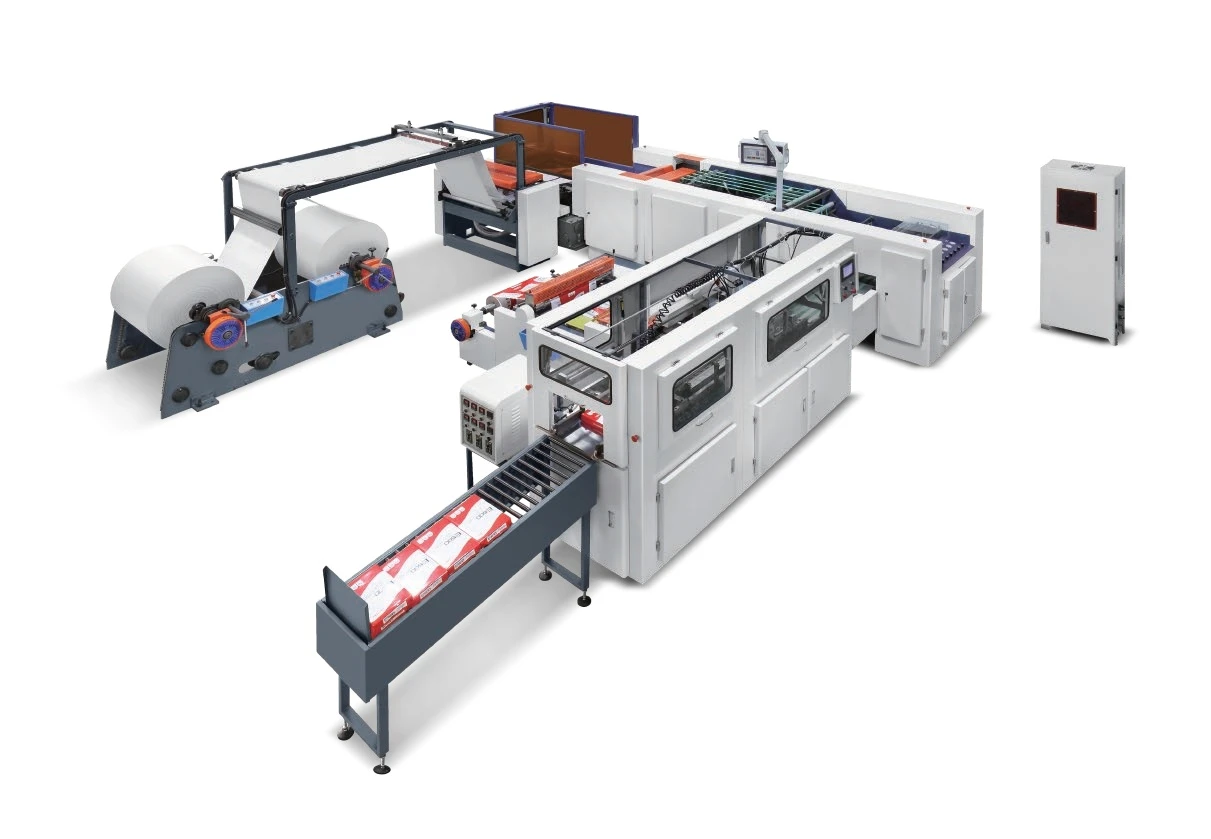

A4 Paper Cutting and Packing Machine is designed to process roll paper into single sheets. It is particularly suitable for cutting and slitting high-quality papers such as premium copy paper, premium writing paper, and premium double-coated paper with a basis weight of 60–100 g/m².
A4 Paper Cutting and Packing Machine utilizes a servo motor with speed control via a variable frequency drive. The A4 Paper Cutting and Packing Machine PLC control system features multiple functions, including automatic tension control, automatic counting, cutting dimension settings, and automatic shutdown based on preset time and quantity.
PRODUCTS FEATURE
· Integrates paper slitting, cutting and automatic packaging to output finished A4 paper directly.
· EPC correction and air-expanding shaft enable stable feeding and quick roller replacement.
· Servo motors, linear guides and ball screws guarantee stable running and high cutting precision.
· Sharp alloy blades deliver smooth cut edges and less material waste.
· PLC touch panel supports counting, lack-paper alarm and overload protection for simple operation.
· Customizable speed, paper thickness and packaging functions for different production demands.
OUR SERVICE
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and salary USD200/day for him
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
OUR ADVANTAGE
WHY CHOOSE KOTEN
Supply China top quality machines with one year guarantee since they get the machine.
There are more than 140 oversea countries clients who have the "KOTEN"brand machines till 2019 withhigh reputation.
All the Koten machines are from factory directly, with factory price.
After sales service is available in some regions where the Koten machines dealers can provide in time, 4Like India, France, Africa, etc.
There are more than 50 engineers are available to be dispatched to overseas for the after sales service.
There are five different solutions our company can provide, different kinds of book making solution, postpress and paper converting solution, paper box making solution, rigid box making solution and paperbag making solution. Customer can choose the right machines according to their requirement.
There are more than 15 years export experience for machinery, familiar with all process of theexporting.
Packing
With in 30 day safter get the deposit.
Packing details:
By strong seaworthy export packaging
FAQ
· Can this machine finish slitting, cutting and packaging A4 paper automatically?
Yes, it realizes integrated processing and outputs finished packed paper directly.
· What's the cutting precision of the equipment?
Servo and ball screw structure ensures high precision with neat cutting edges.
· Is it easy to replace raw paper rolls?
Equipped with air-expanding shaft and EPC correction for fast roll change and stable feeding.
· Does the machine have safety and counting functions?
It comes with PLC touch control, auto counting, paper shortage alarm and overload protection.
· Can I customize machine parameters?
Yes, production speed, applicable paper thickness and packaging modules are customizable.
· What kind of paper does this machine adapt to?
It fits common copy paper rolls for mass A4 finished paper production.
Hot Tags: a4 paper cutting and packing machine, China a4 paper cutting and packing machine manufacturers, suppliers, factory
|
Model |
KT-DTCP-A4 |
Model |
KT-DTCP-A4 |
|
Working width |
Long side 297 mm |
Production operating speed |
200 m/min |
|
Cutting specifications |
A4 (short side 210 mm) |
Cutting frequency |
635 cuts/min |
|
Paper roll diameter |
1200mm-400mm |
Sheet discharge frequency |
5 times/min |
|
Paper roll core diameter |
76.2mm-152.4mm |
Production capacity |
8 hours/day, 9.5–10 tons |
|
Paper weight |
60–100 g/m² |
Paper cutting load |
400 g/m² |
|
Cutting length |
297 mm |
Paper cutting accuracy |
±0.2 mm |
|
Sheet count |
0–500 sheets |
Main power supply |
3-phase, 4-wire, 380 V, 50 Hz |
|
Sheet height |
65 mm |
Cutting frequency |
780 cuts/min |
|
Design speed |
250 m/min |
Sheet ejection frequency |
6/min |
|
Production Efficiency |
10–12 (packages/min) |
Coating Machine |
3.7 kW |
|
Automatic cross-cutting and feeding of roll outer packaging |
10–12 (sheets/min) |
Total Power |
12KW |
|
Packaging Specifications |
210 × 297 × 50 mm |
Compressed Air |
0.6–0.8 MPa |
|
Outer wrapping paper dimensions |
550–560 mm × 386 mm |
Dimensions |
3400 mm × 3000 mm × 1600 mm |
|
Outer wrapping paper weight |
65–80 g |
Weight |
2000KG |
|
Power Supply |
380V, three-phase, four-wire |
Applications |
Packaging consists of a six-sided wrap made of color-printed, laminated paper |
