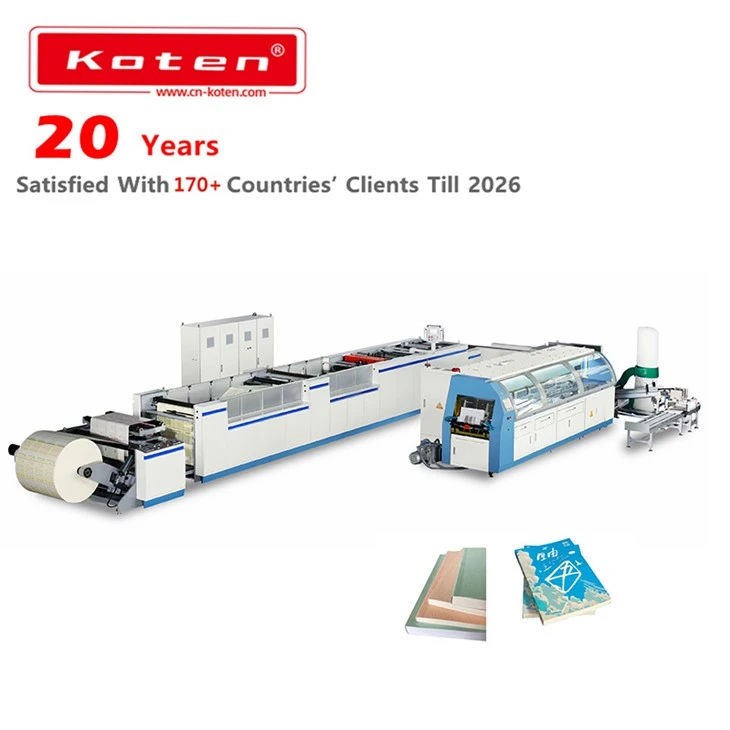

Reel To Sheets Cutting, Glue Binding And Trimming Production Line

Reel To Sheets Cutting, Glue Binding And Trimming Production Line

Model KT-890Z
Reel width 520-890mm
Reel diameter Max. 1300mm
Applicable paper thickness 55-80gsm
 Splitting speed Max.300m/min
Slitting specifications   145-450mm
Max.finished product size 445mm*450mm
Min.finished product size   125mm*175mm
Total power 50kw
Send Inquiry
Description
Technical Parameters

Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of reel to sheets cutting, glue binding and trimming production line in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved reel to sheets cutting, glue binding and trimming production line, welcome to get quotation from our factory.



1.With meticulous design and guaranteed high-precision assembly processes, this machine delivers a high-quality paper folding platform. It ensures stable high-speed paper transport and precise motion control, thus producing consistently high-quality finished products.

2.Equipped with advanced tension control and motion control systems, it achieves high-precision paper tension regulation and ensures stable paper transport.
3.It features high folding flatness and precise slitting accuracy, ensuring excellent quality of books and periodicals.
4.High-precision paper counting enables stable high-speed operation and efficient high-volume production.



Products Description

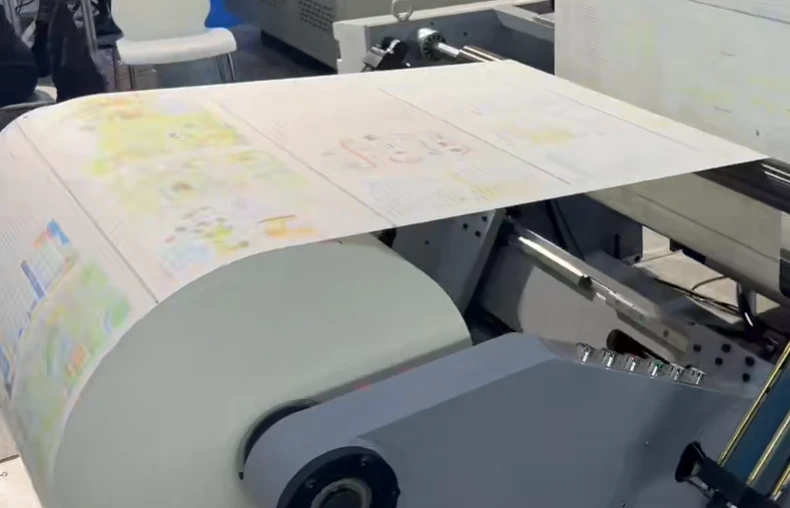

4

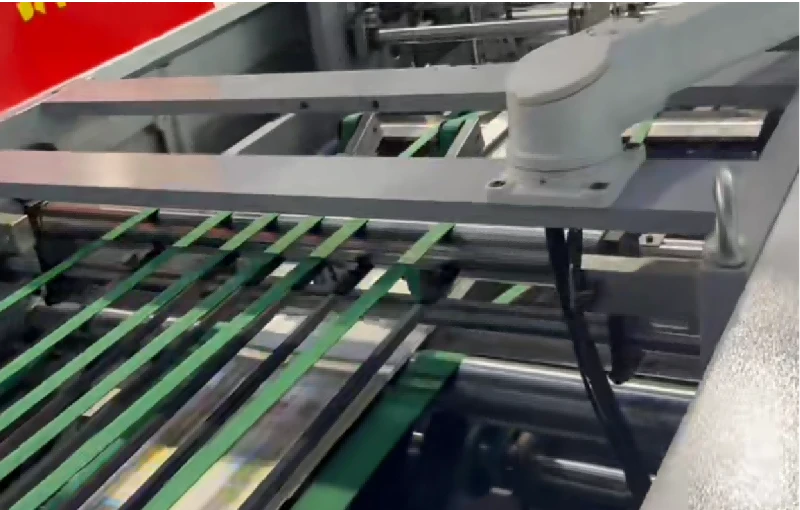

3

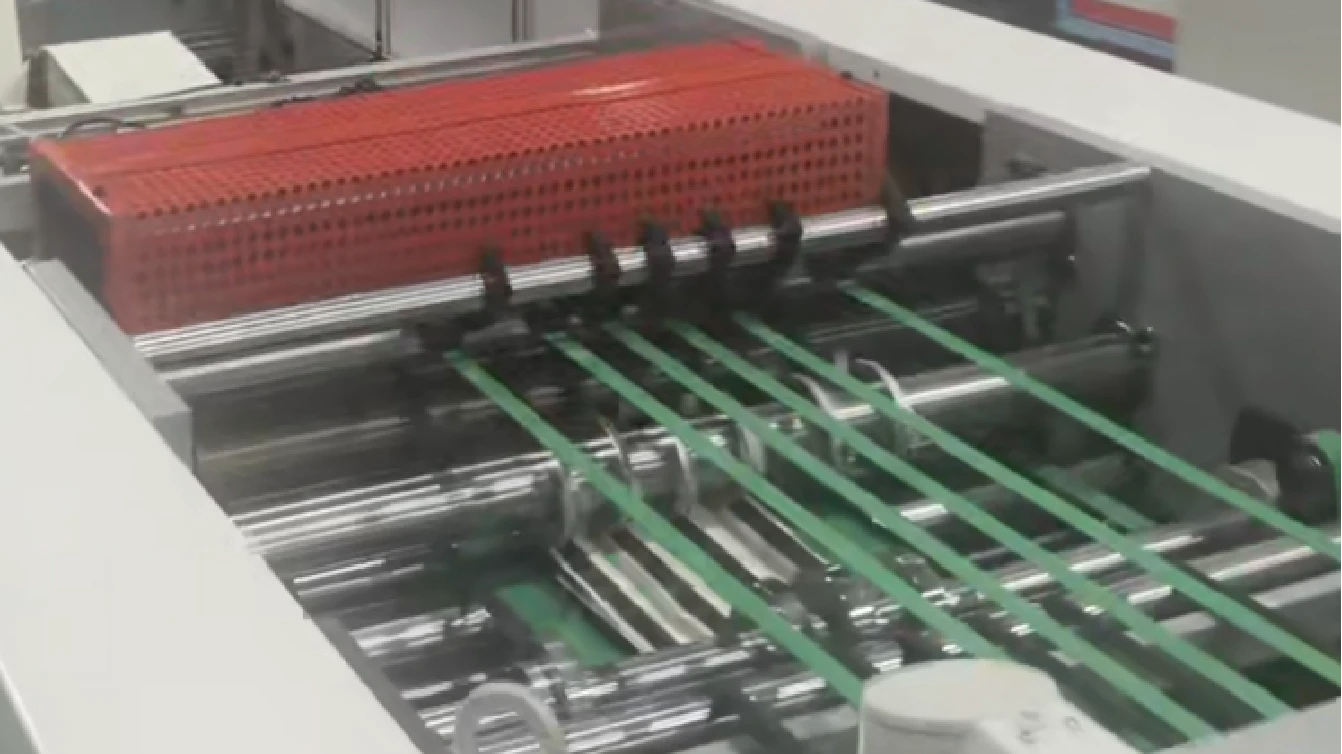

2

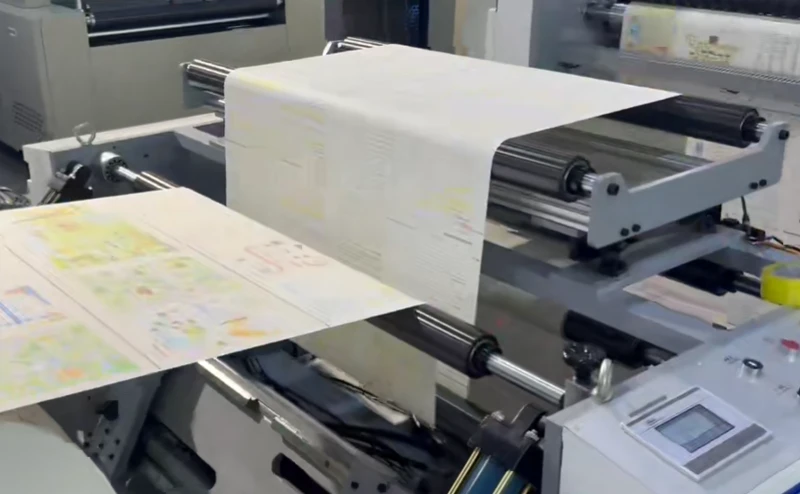

5

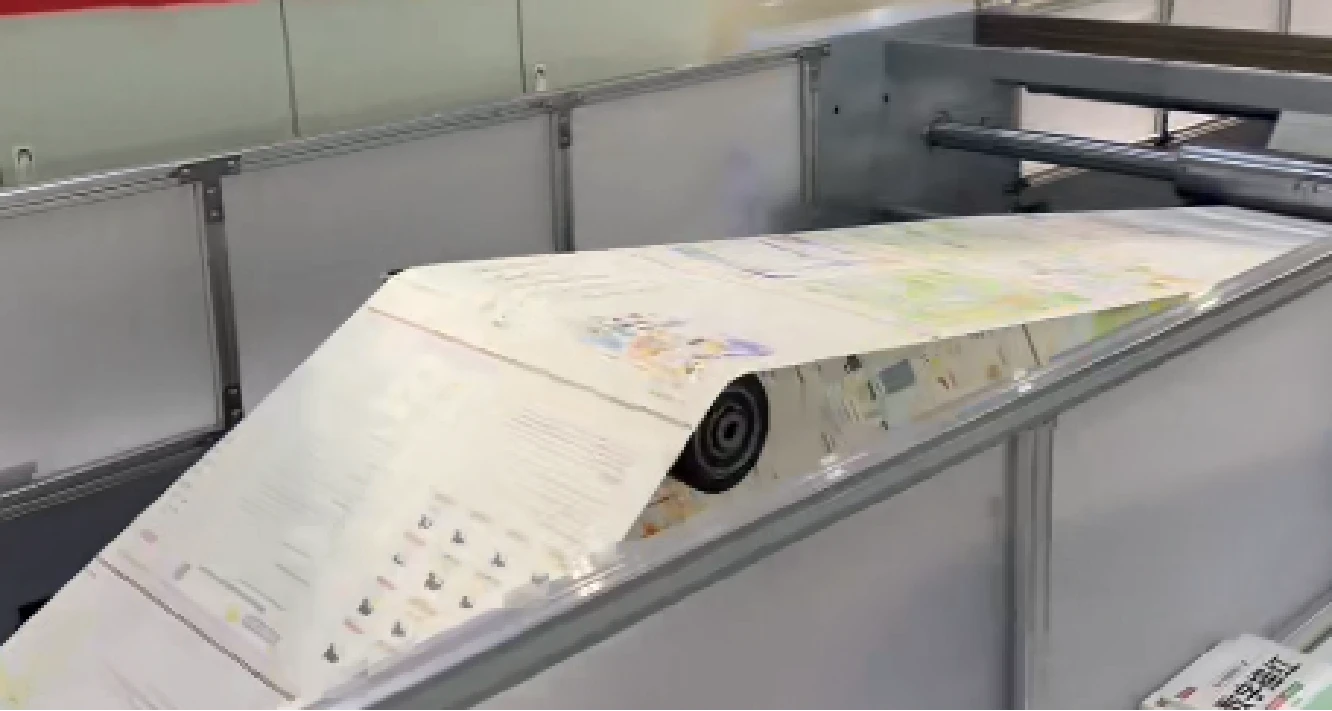

1



Main Parameters



Model

KT-890Z

Reel width

520-890mm

Reel diameter

Max. 1300mm

Applicable paper thickness

55-80gsm

 Splitting speed

Max.300m/min

Slitting specifications

  145-450mm

Max.finished product size

445mm*450mm

Min.finished product size

  125mm*175mm

Total power

50kw

Number of clamps

12

Max. binding speed

5000books/hour

Binding length

120-450mm

Binding width

105-320mm

Binding thickness

2-50mm

Cover length

120-450mm

Cover width

200-660mm

Total power

25kw

Dimensions

L8838×W3570×H1700mm

Weight

6000kg

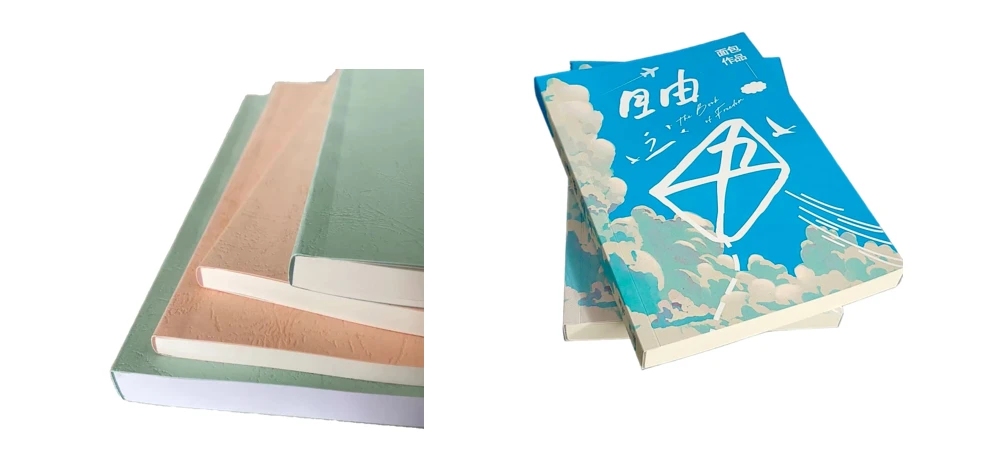

Application



product-1110-508



Company Profile

Installation

The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.

Guarantee

One year, within one year, the damaged spares by nature can be changed for free.
