Paper Counting Machine for Thick Paper

Paper Counting Machine for Thick Paper

Paper Thickness Range 22-230gsm(Carbon paper, offset printing paper, coated paper,etc.)
Max. Counting Speed 1500pcs/min
Paper Size Min. 100×150mm, Max. 546X788mm
Paper Stacking Height 300mm(Max.)
Power Supply/Voltage AC220±10V, 50Hz
Motor 0.4KW
Collecting Table Width 580X900mm(collecting table can be customized)
Collecting Table Height 770mm
Machine Size 900×1080×1500mm
Machine Weight 230kg
Lable for Paper in Pile Width 6mm,Length 100m
Consumed Power 600W
Send Inquiry
Description
Technical Parameters

Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of Paper Counting Machine for Thick Paper in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved Paper Counting Machine for Thick Paper, welcome to get quotation from our factory.

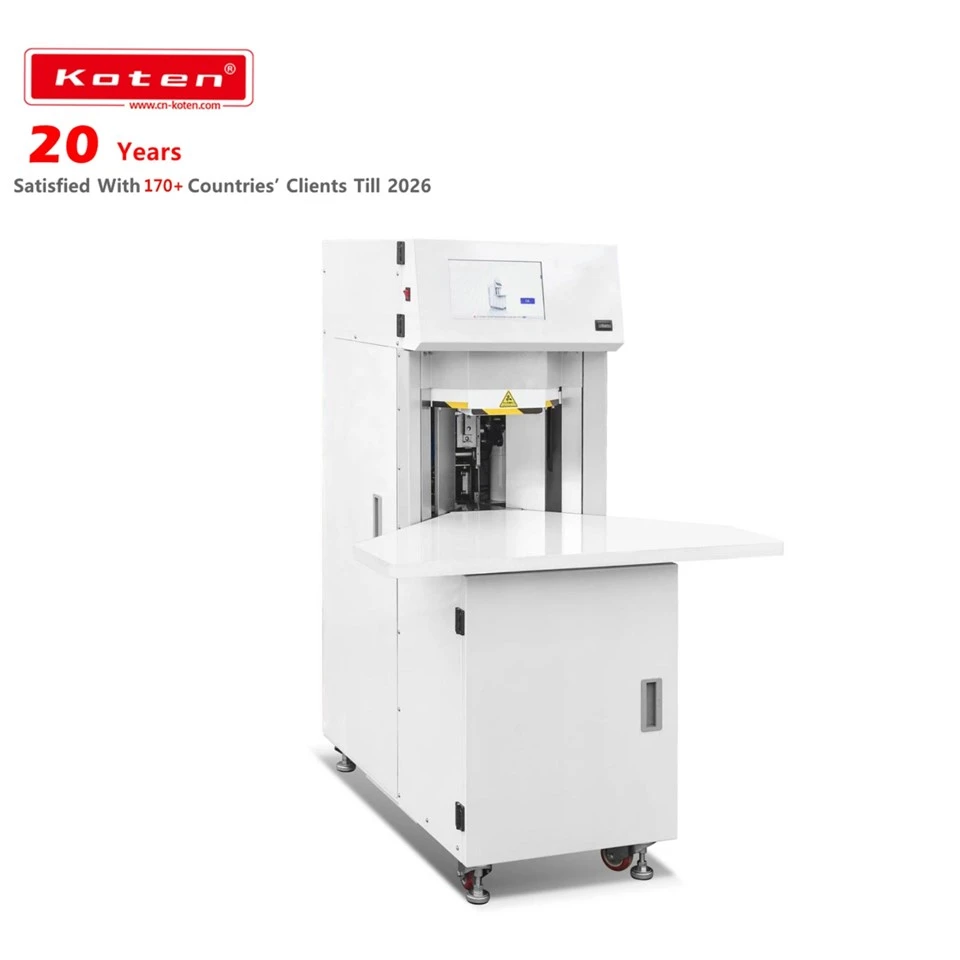

Model SZJ-980 paper counting machine delivers a high counting speed up to 1500 sheets per minute. It adapts to paper weights from 80gsm to 400gsm, compatible with cardboard, offset paper, coated paper and other sheet materials. Designed with a double-blade counting structure, it counts sheets precisely without scratching or damaging paper corners, ideal for finished paper inspection before delivery. It supports both equal and unequal marker insertion to fit flexible variable spacing demands. Fitted with a 10.2-inch large touch screen, it features user-friendly hierarchical menus and built-in fault diagnosis for simple operation. Air pressure and balance hardware require no manual adjustment; the machine supports one-click balance self-adaptation and software-based air pressure parameter setup, simplifying daily operation significantly.



Products Description



1
2
3
5
4



Main Parameters



Paper Thickness Range

22-230gsm(Carbon paper, offset printing paper, coated paper,etc.)

Max. Counting Speed

1500pcs/min

Paper Size

Min. 100×150mm, Max. 546X788mm

Paper Stacking Height

300mm(Max.)

Power Supply/Voltage

AC220±10V, 50Hz

Motor

0.4KW

Collecting Table Width

580X900mm(collecting table can be customized)

Collecting Table Height

770mm

Machine Size

900×1080×1500mm

Machine Weight

230kg

Lable for Paper in Pile

Width 6mm,Length 100m

Consumed Power

600W



Application



21



Company Profile

Installation

The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.

Guarantee

One year, within one year, the damaged spares by nature can be changed for free.
