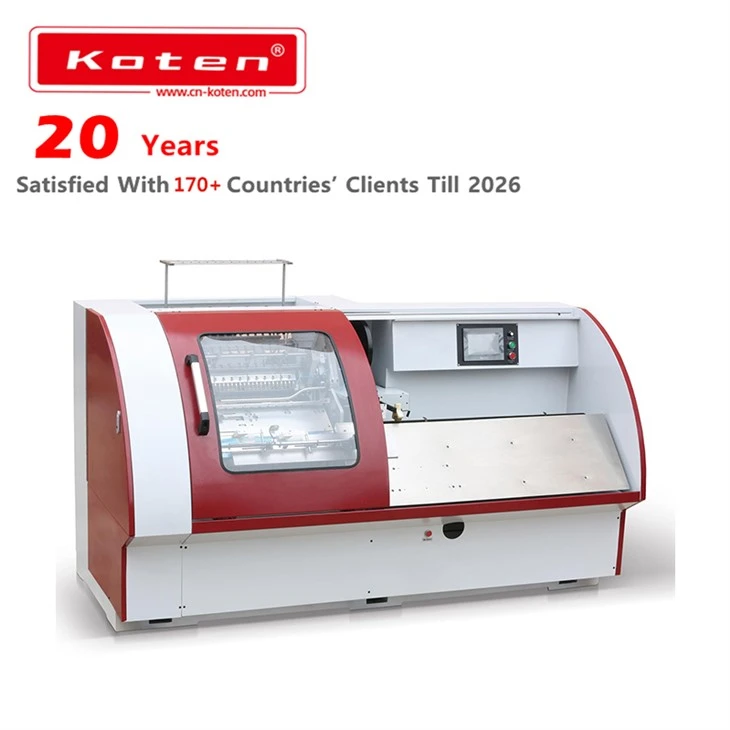

Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of book sewing machine with auto feeding in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved book sewing machine with auto feeding, welcome to get quotation from our factory.
Products Description
1.Intelligent control, contributes more easily operating, making the machine safer, energy saving and high efficiency.
2.High precision mechanical processing, needle plate math with linear guide rail, guarantee the accuracy of a needle and decrease the adjusting and processing.
3.Equipped with automatic folds centralizer, making the bottom hole more accurate pull folds circularly, feeding folds more accurately.
4.The intelligent high & low setting makes the folds more stable
Products Feature
The arms are made of Al-Mg alloy die casting, which is lightweight yet strong, ensuring high-speed operation of the machine.
The needle base is manufactured using powder metallurgy, with a sealed integrated design and equipped with a linear guide, enhancing stability during operation. It does not require needle point adjustment (12 groups of needles, 18mm needle distance).
The main cam incorporates SKF OD ball bearings to achieve gapless movement, and the needle plate is precisely positioned (patented technology).
Recirculation pull-folders combined with scale board transmission reduce friction, while the automatic lifting platform with the delivery unit enables easy and quick book output.
Intelligent control includes: automatic oil feeding, cutting and counting, missing or absent folder detection, and needle/thread break alarms. This reduces labor requirements while improving work efficiency.
Main Paramater
|
Model |
SX-460H |
|
Max. Sewing Size |
460x430mm |
|
Min. Sewing Size |
150x80mm |
|
Sewing Speed |
80 cycles/min |
|
Needles |
12groups |
|
Needle Interval |
18mm |
|
Power Required |
2kw |
|
Overall Dimensions |
2240*1400*1500mm |
|
Machine Weight |
about 1500kg |
Application
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
