Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of fully automatic high-speed book sewing machin sx-220 in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved fully automatic high-speed book sewing machin sx-220, welcome to get quotation from our factory.
Products Description

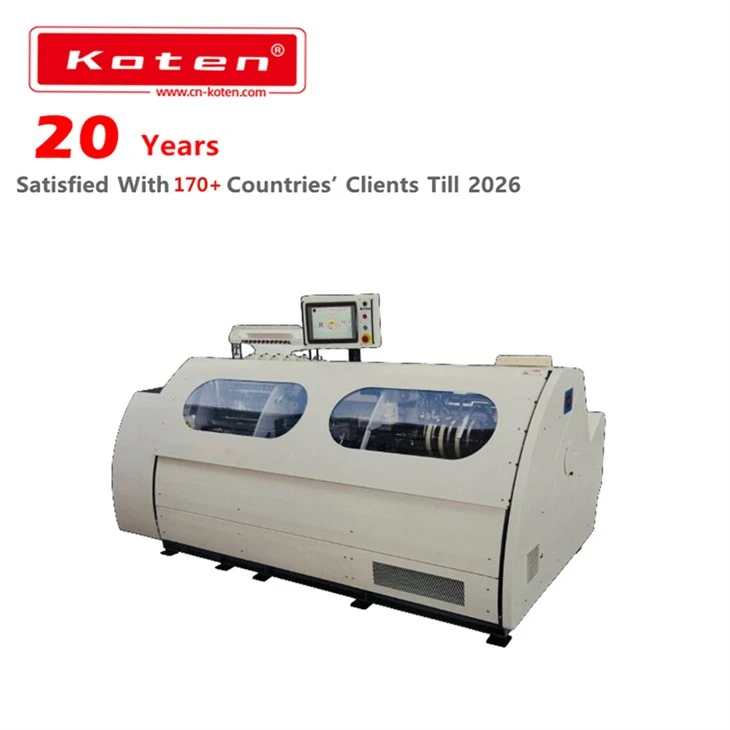

SX-220 is an automatic book sewing machine of domestic laading technologg,up to 220 posts per minute.
SX-220 has three new cam bax two swing parts parts of a feeding hopper.These devices can significantly reduce vibratian,improve stability ,more durable than the conventional external t cam.
Products Feature
12-inch large color touch screen coupled with a strong Japanese Mitsubishi PLC system can control all the features of the machine.

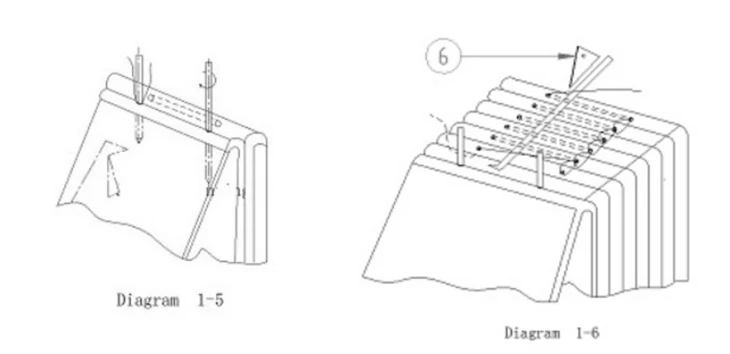

Ultra-short stitching and crochet stitching can easily and securely slide along the back of the signature into the hole punched out of the stitch.And,the new cone-shaped pin shot out of the hole is very small,very uniform,thus lockingline better
Accelerator wheel can be programmed to vary the speed and height to which a post may vary in thickness and type of signature. Especially for short version of the book,and in situations where there is light paper and /or different signatures in a book.
Suction device imported vacuum generator,compared with the traditional air pump to reduce noise,eliminating the heat generated by the wind pump itself,long-term use of maintenance-free advantages.
Main Paramater
|
Model |
SX-220 |
|
Max. machine speed |
220 leaflets/min |
|
Min. size |
75*120mm |
|
Max.size |
320*430mm(Custom size 320*510mm) |
|
The numbers of mortgage page |
9pcs |
|
Needle |
10(Opitional 12) |
|
Pitch |
19mm |
|
Rated power |
4KW |
|
Voltage |
380V,50HZ,3P |
|
Consumption |
500L/min(6Bar) |
|
Net weight |
3500KG |
|
Dimension |
2800*1800*1800mm |
Application
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
