Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic die cutting machine in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved automatic die cutting machine, welcome to get quotation from our factory.
AEM-1050 is mainly applied to die-cutting (full cutting and half cutting), creasing, laminating and automatic waste stripping of various non-metallic materials such as EVA, double-sided adhesive tapes, electronic materials and mobile phone rubber pads. The machine adopts steel cutting dies, metal molds and steel wires (or engraved steel plates). By applying specific pressure via the embossing plate, it can cut printed materials or cardboard into designated shapes.
Products Description
Products Feature
1.Integrated design, precise assembly, excellent stability, high safety performance and low noise.
2.Adopts worm & worm gear plus crankshaft transmission structure, delivering powerful cutting pressure and long service life.
3.Equipped with high-precision intermittent mechanism to ensure outstanding cutting accuracy and stable operation.

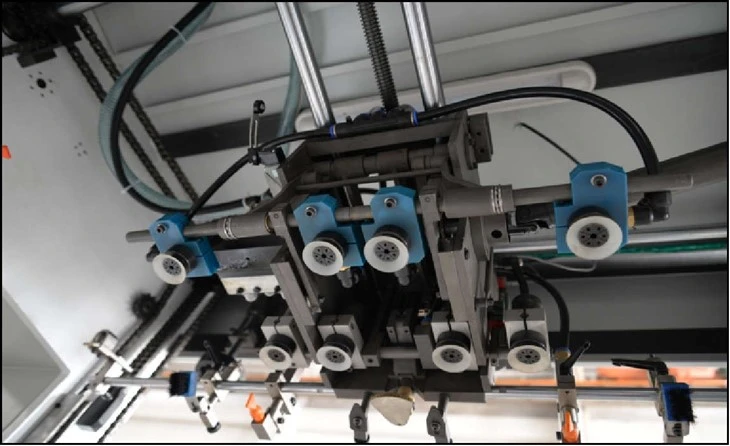

4.Fitted with feeder based on European technology; suction force is adjustable. It operates stably and precisely with great adaptability to various paper stocks.
5.Supports non-stop feeding. Pre-stacking and delivery device reduces auxiliary time and improves production efficiency.
6.Automatic pressure adjustment system with digital pressure display.
7.Ergonomically designed die frame and base plate facilitate easy installation and adjustment.
8.Pneumatic die locking device fixes the die frame more stably and accurately, saving setup time.
Main Paramater
|
Model |
AEM-1050 |
| Max sheet size: | 1050 x 750 mm |
| Min sheet size: | 400 x 360 mm |
| Max cutting size: | 1040 x 720 mm |
| Die chase inner size: | 1144 x 760 mm |
| Cutting plate size: | 1080 x 736 mm |
| Min gripper margin: | 8mm |
| Cutting precision: | ≤±0.1 mm |
| Max cutting pressure: | 350 T |
| Max cutting speed: | 7500 S/H |
| Feeding pile height: | 1550 mm |
| Delivery pile height: | 1400 mm |
| Application: | Cardboard: 0.1～2 mm Corrugated paper: ＜4 mm |
| Main motor power: | 11 KW |
| Total power : | 17.8 KW |
| Dimension: | 4850(+1650)x 2100(+1600) x 2350 mm |
| Weight: | 16 T |
Application
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
