Products Description

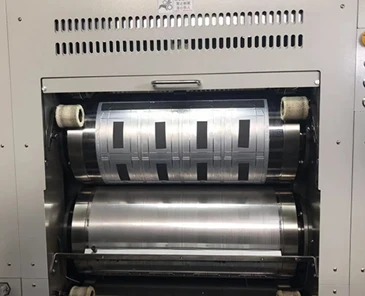

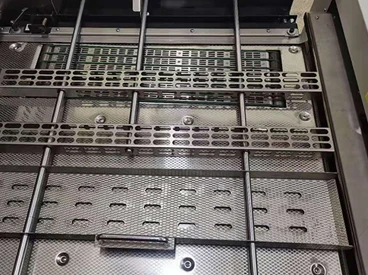

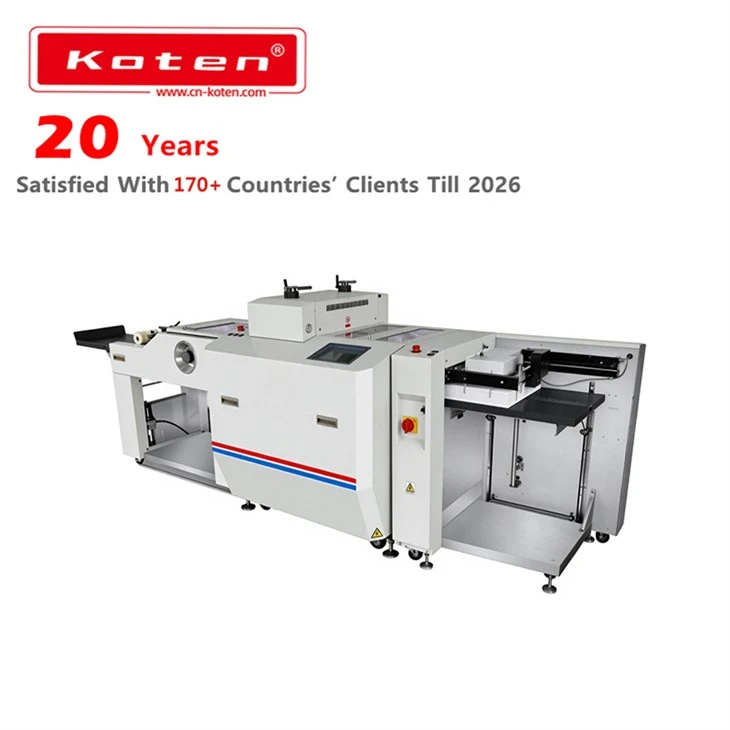

The DP‑A4874 rotary die‑cutting machine is an integrated machine suitable for multiple production methods, including small‑batch and repeat production. It uses flexible molds that are easy to change. Functions include automatic paper lifting, automatic paper feeding, double‑sheet detection, registration mark tracking for die‑cutting alignment, automatic deviation correction, and automatic waste discharge.
It is mainly suitable for stickers, labels, wine labels, playing cards, small boxes, and similar products. The processing materials include plain paper, coated paper, cardboard, PE film, and more.
Main Paramater
|
Model |
DP-A4874 |
|
Sheet size (before processing) |
Max:480X740mm Min:200X275mm |
|
Material Thickness |
Die Cutting:0.2mm–0.5mm |
|
Max creasing:0.4mm |
|
|
Final product size |
With separator(Final product:widthxlength) |
|
Max final product size:456mmX720mm |
|
|
Min final product size:50mmX80mm |
|
|
Min Discharge width:5mm |
|
|
Mould size |
Mould Height:1mm |
|
Max Mould size：480mmX750mm |
|
|
Min Mould size：160mmX100mm |
|
|
X, Y direction die cutting accuracy |
± 0.1mm |
|
Feeder stack height |
500mm |
|
Max Production Speed |
6000 cycles per hour |
|
Main motor power |
4.5kw |
|
Voltage |
Single Phase 200V–240V,50Hz/60Hz |
|
Weight |
1700kg |
|
Machine size(LXWXH) |
4620mmX1300mmX1650mm |
|
Machine size(With receiving table) |
5320mmX1300mmX1650mm |
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
