Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of single head waste stripping machine with conveyor for shoe box in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved single head waste stripping machine with conveyor for shoe box, welcome to get quotation from our factory.

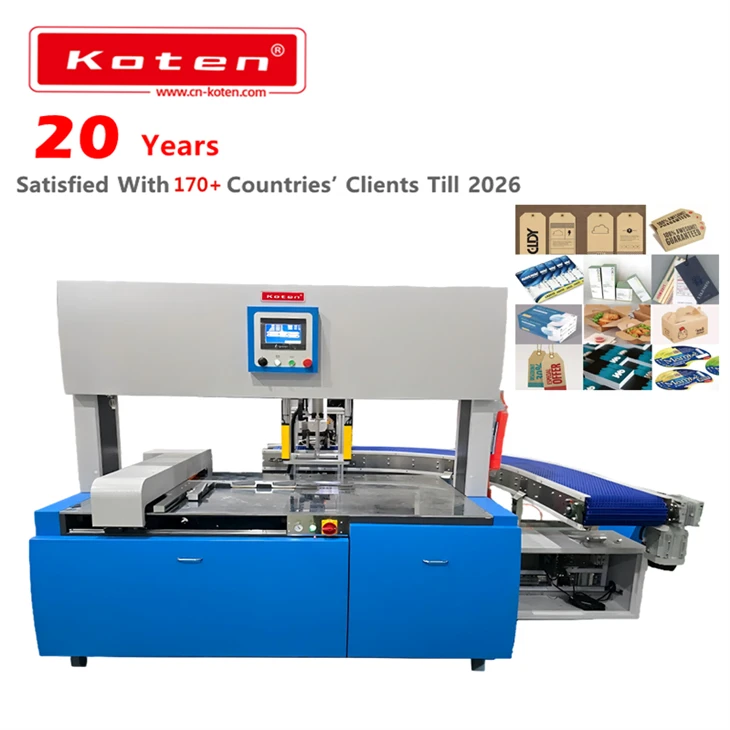

This automatic stripping machine is dedicated post‑press gear for waste separation of die‑cut sheets. By taking the place of tedious manual stripping work, it greatly boosts productivity for paper and plastic die‑cut items.
Widely used in printing & packaging sectors, it works right after paper creasing and die‑cutting procedures to streamline scrap‑removal workflows. It fits production lines processing hang tags, paper cartons, paper cups, food containers, plastic boxes and other comparable finished goods.
Products Description
Products Feature
Main Function
This equipment automatically picks finished workpieces including cloth labels, paper cards, medicine boxes, cigarette packs and small toy boxes right after die‑cut processing.
Machine Advantages
It adopts PLC touch‑screen control for parameter setup, delivering simple and user‑friendly operation. The core motion system integrates hydraulics with servo‑driven ball screws, bringing nimble movement and greatly reduced failure risks.
Features
Automatic stripping is realized post die‑cutting, simplifying finished‑product collection for operators. For end‑users, it achieves high throughput, effective cost reduction and remarkable production efficiency.
Main Paramater
|
STCB-92 Automatic stripping machine |
|
|
Max Stripping Area(mm) |
1080*780 |
|
Mini Stripping Area(mm) |
450*320 |
|
Max Stripping Finished Product Size(mm) |
420*280 |
|
Mini Stripping Finishes Product Size(mm) |
30*30 |
|
Stripping Height(mm) |
40-120 |
|
Stripping speed(time/min) |
15-20 |
|
Main Power(KW) |
4 |
|
Voltage(V) |
380V/50HZ |
|
Wire Specification(mm) |
2.5 |
|
Machine Weight(kg) |
3200 |
|
Overall Dimension (mm) |
3300*1800*1900 |
|
Packing Size(mm) |
3000*2000*2050 |
Application
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
