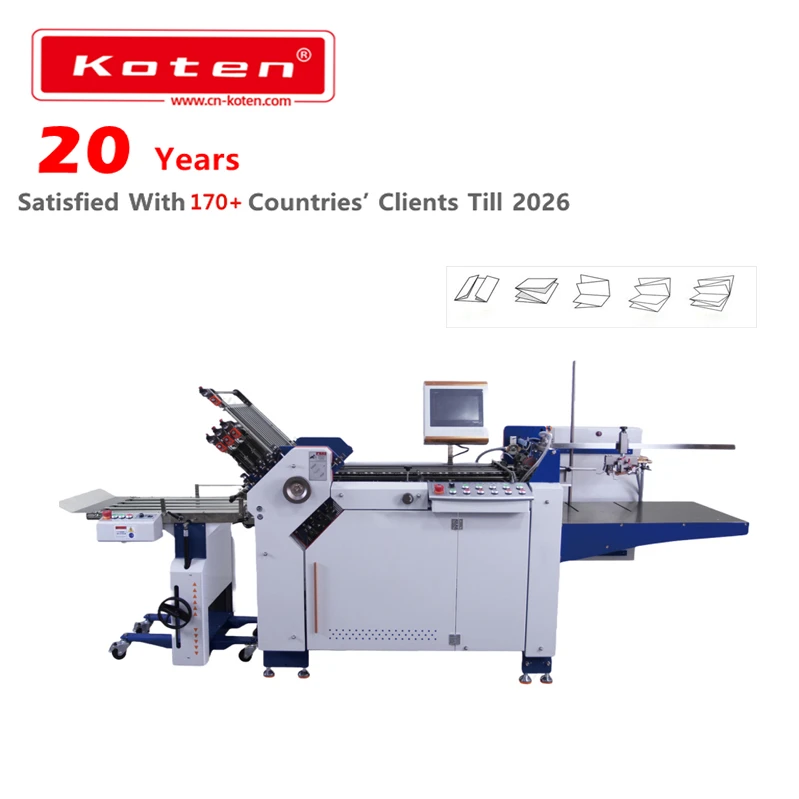

Multifunctional Electric Paper Folding Machine For Cards, Menus & Flyers

1. UItra-fast and Stable Paper Feeding

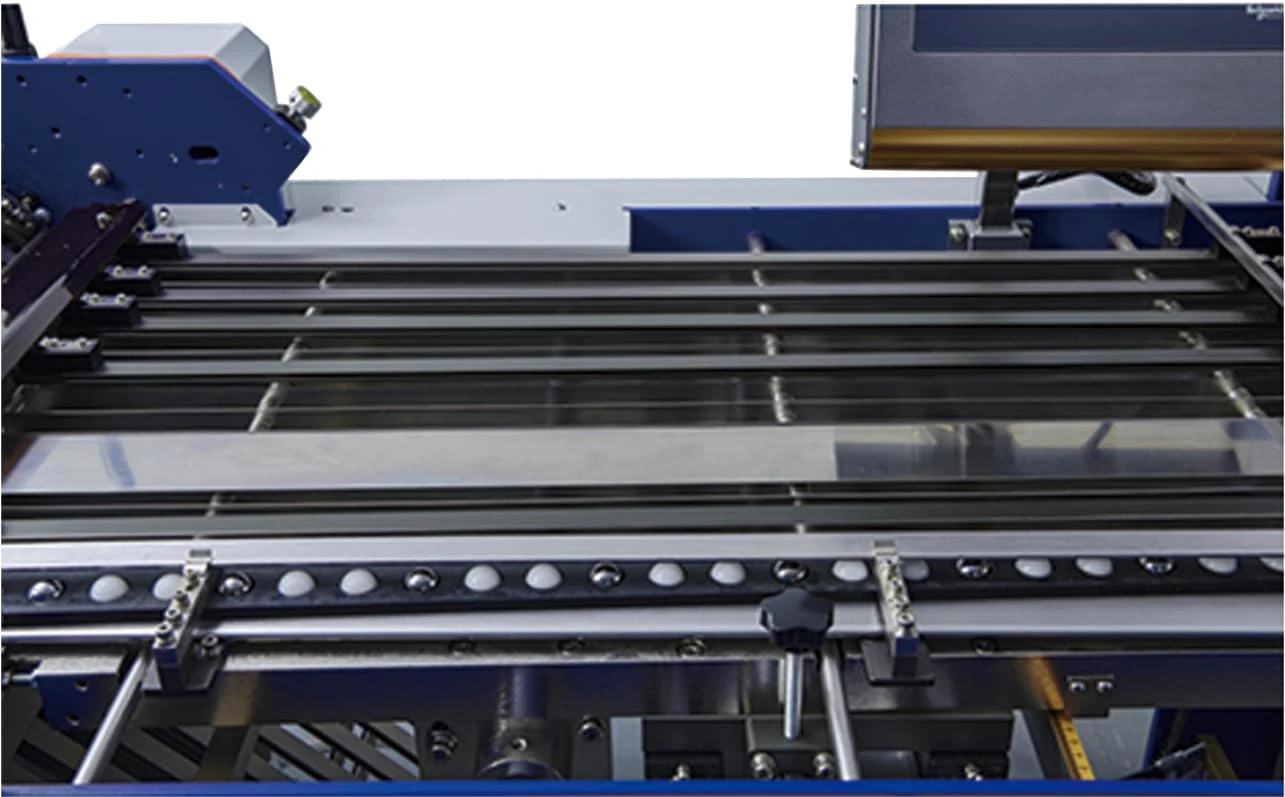

Featuring a servo motor and precision sensor linkage system,it achieves speeds of up to 200m/min.Even at high speeds,there is no paper misalignment or static buildup.It ensures zero-error feeding for paper of various weights (30-250g/m²).

2. High-speed Response Improved Efficiency

The solenoid valve has a millisecond-level response time and synchronizes with the machine signals,reducing material waste, adjustment time,manual labor,and connection errors.

3. Precise Three-Hole Airflow Control

The suction wheel features a three-hole layout,with independently controlled air channels.This allows dynamic adjustment of suction force distribution during paper transport,ensuring the paper stays closely aligned with the transmission path throughout the process.It effectively prevents edge curling,misalignment,or floating caused by uneven airflow.

4. Physical Double-Sheet Detection

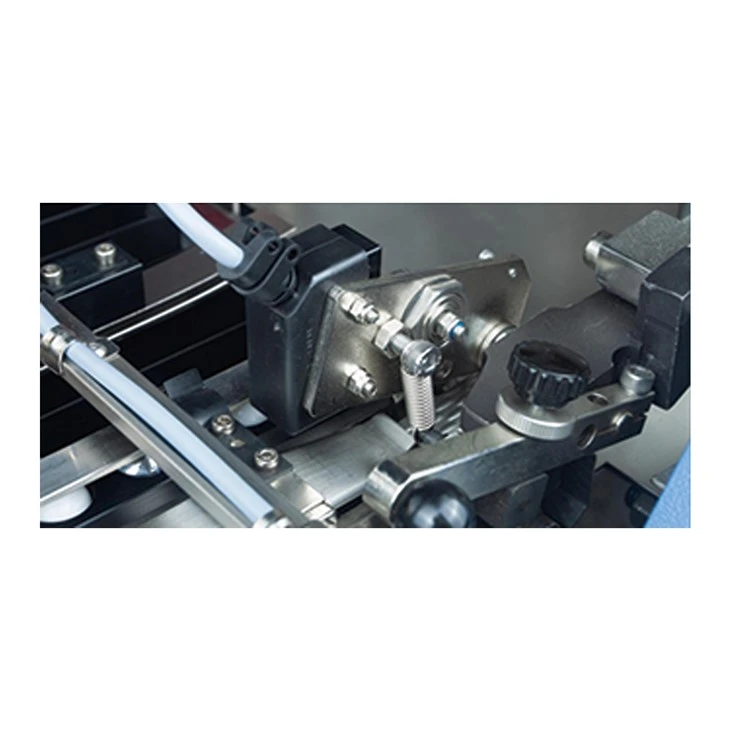

By combining a mechanical lever with a pressure sensor,the system triggers a mechanical structure to block the paper feed chain in real time when the stacked paper exceeds a preset thickness(e.g.,0.2 mm).Compared to electronic detection:It does not rely on electronic components such as capacitive or photoelectric sensors,offering stronger resistance to electromagnetic interference,greater stability,and a longer lifespan.

5. Self-Sealing Lubrication System

Gears and bearings are equipped with a built-in automatic oil supply system,which activates a slow-release lubrication mechanism to ensure continuous self-lubrication.

6. Maintenance-Free Operation

The fully automatic oiling system eliminates the need for manual maintenance,saving lubricant costs and preventing oil contamination that could damage the gears-while also keeping the workshop cleaner.
