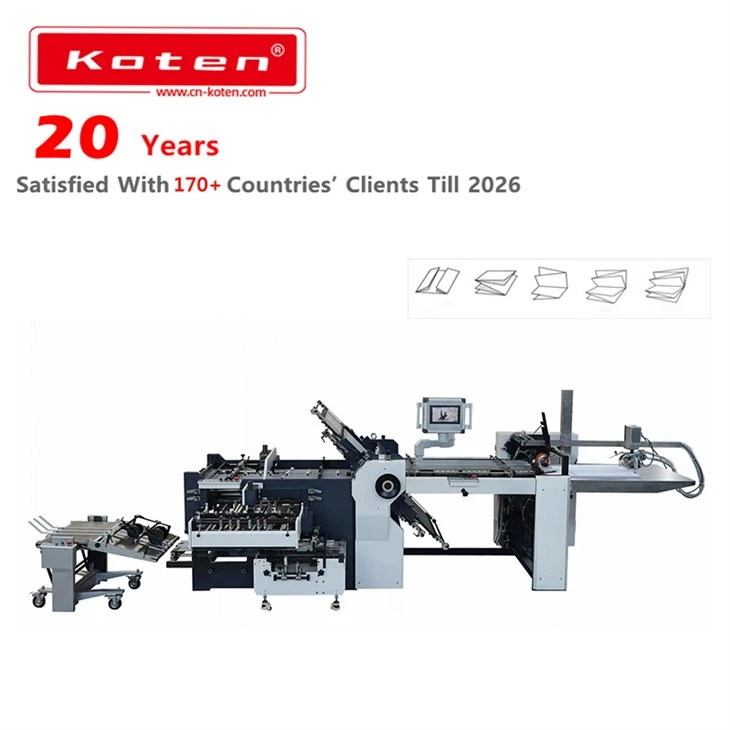

Ruian Koten Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic industrial large format paper folding machine heavy duty 4 plate folder for a1 a2 paper in China. With abundant experience, we ware committed to providing high quality machinery made in China with competitive price. If you're going to buy CE approved automatic industrial large format paper folding machine heavy duty 4 plate folder for a1 a2 paper, welcome to get quotation from our factory.
Products Feature
1. Four buckle plates and three mechanically controlled knives enable parallel folding and cross folding. Optional configurations include 32-mo inward/outward folders and 32-mo (24-mo) double inward folders.
2. High-precision helical gears ensure perfect synchronization and low noise operation.
3. Sensitive double-sheet and paper-jam automatic detection devices, plus a malfunction display function, facilitate troubleshooting.
4. Servo-controlled electric folding knives realize high-speed operation.
5. Scoring, perforating, and slitting functions are available upon request.
6. High-performance automatic monitoring sheet feeder with automatic pile height control.
7. PLC-controlled electrical system with a large touch screen HMI (Human-Machine Interface) for easy parameter input.
8. VVVF (Variable Voltage Variable Frequency) control ensures smooth operation with overload protection.
9. Dust-blowing device cleans the external surface of the machine, facilitating convenient maintenance.
10. Each unit is driven by an independent motor.
11. The fourth folding unit can be stopped independently to reduce energy consumption.
12. The entire third and fourth folding units can be pulled out, making operation and maintenance more convenient.
Main Paramater
|
Model |
ZYHD-780D |
|
Max.Sheet Size |
780x1160mm |
|
Min.Sheet Size |
150x200mm |
|
Min. Sheet Width of Parallel Folding |
55mm |
|
Paper Thickness |
40-210gsm |
|
Max.Folding Speed |
230m/min |
|
Max.Folding Knife Speed |
350strokes/min |
|
Total Power |
7.8kw |
|
Overall Dimensions(LxWxH) |
5400x2120x1630mm |
|
Machine Weight |
2400kg |
Application
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
