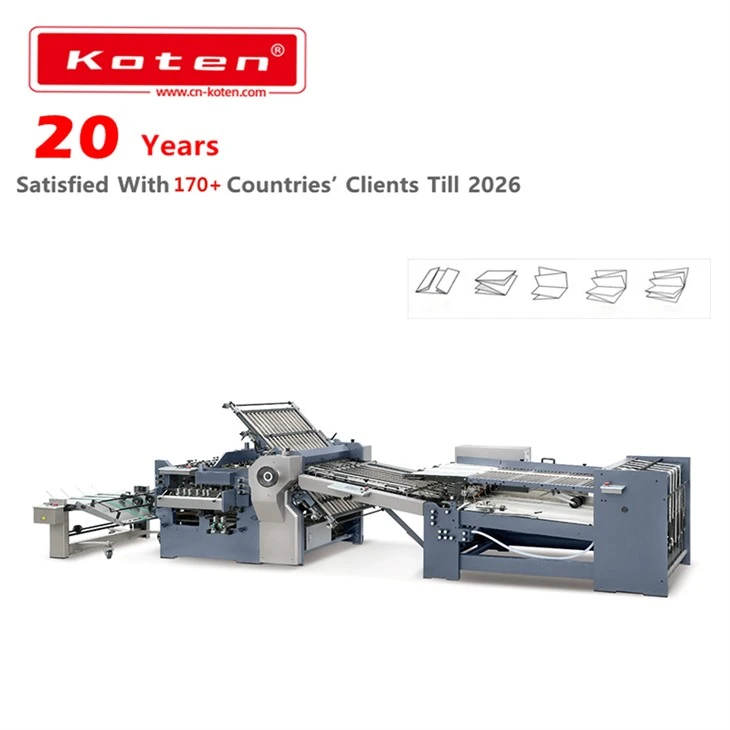

Rotary Folding Machine With Electrical Knife From China Manufacturer

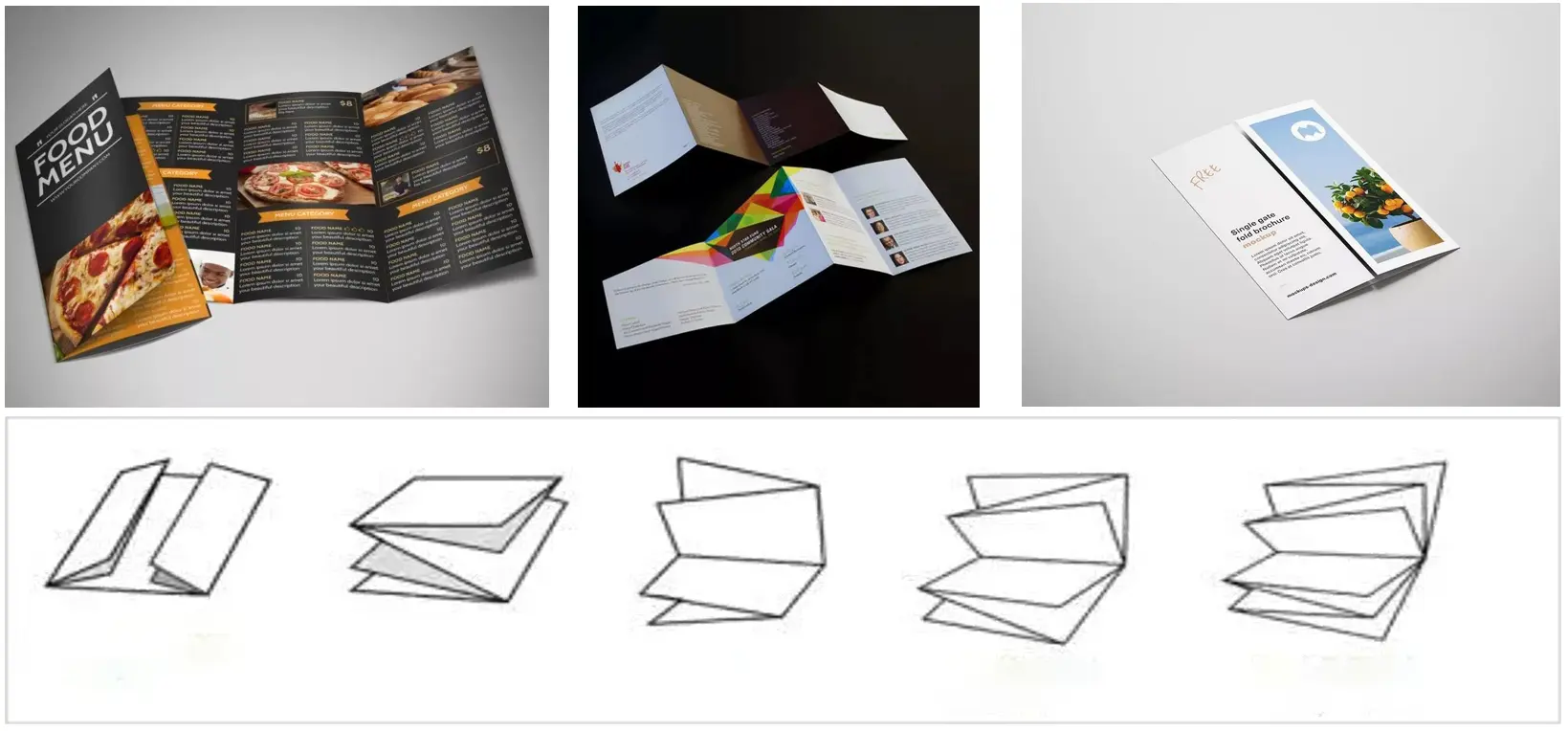

1.Four buckle plates and three mechanically-controlled knives can carryout parallel folds and cross folds,optional inward/outward folders of 32-mo,and twofold inward folders of 32-mo(24-mo).

2.Proper machine height makes comfortable operation.

3.High precision helical gear guarantees perfect synchronization and low noise.

4.The imported folding roller guarantees strong suction capacity,perfect antirust capability,and low printing ink viscidity.

5.Proper buckle plates ensure superior reliability of paper feed and precisefolding result.

6.Sensitive automatic control device of double sheet and jammed sheet.

7.Electrically controlled knife with servomechanism for each folding realizeshigh speed,superior reliability,and minor paper wastage.

8.Scoring,punching,and slitting at request.

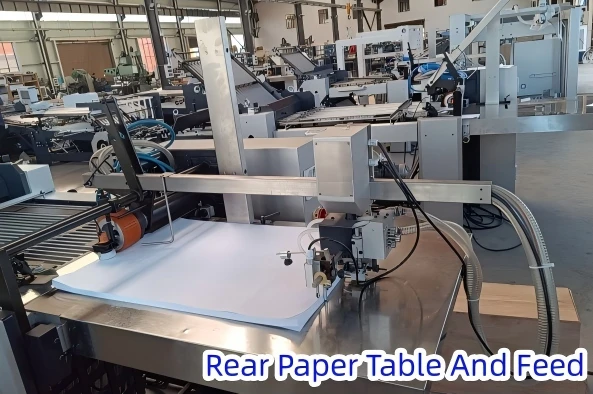

9.Special paper pressing system ensures precise paper conveying and convenient operation.

10.Automatic control device of pile height.

11.High performance and automatic monitoring sheet separating feeder.

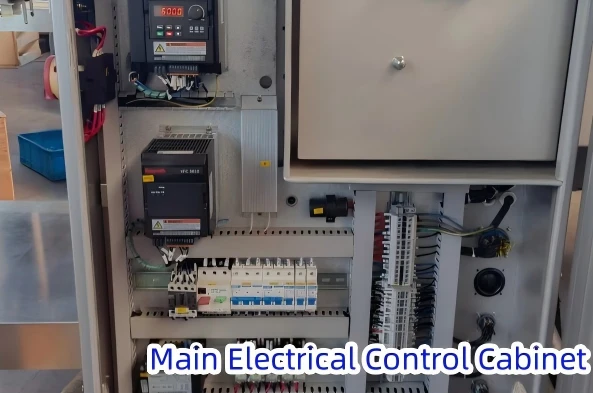

12.Electrical system controlled by PLC,Man-machine interface with a large touch display screen facilitates parameter input.

13.Malfunction display function facilitates trouble shooting.

14.Smoothly controlled by WVF with overload protecting function.

15.Device for blowing dust can clear the dust of outside surface ofmachine and effectively for maintenance of machine expediently.

16.Each unit is drived by a separated motor.

17.The forth folding can be stopped independently,in order to reduce the energy wastage

18.The whole third and forth folding can be moved out ,which is moreconvenient to operate and maintain.

19.Each unit is drived by a separated motor.

20.The forth folding can be stopped independently,in order to reduce the energy wastage

21.The whole third and forth folding can be moved out ,which is more convenient to operate and maintain
