Products Description

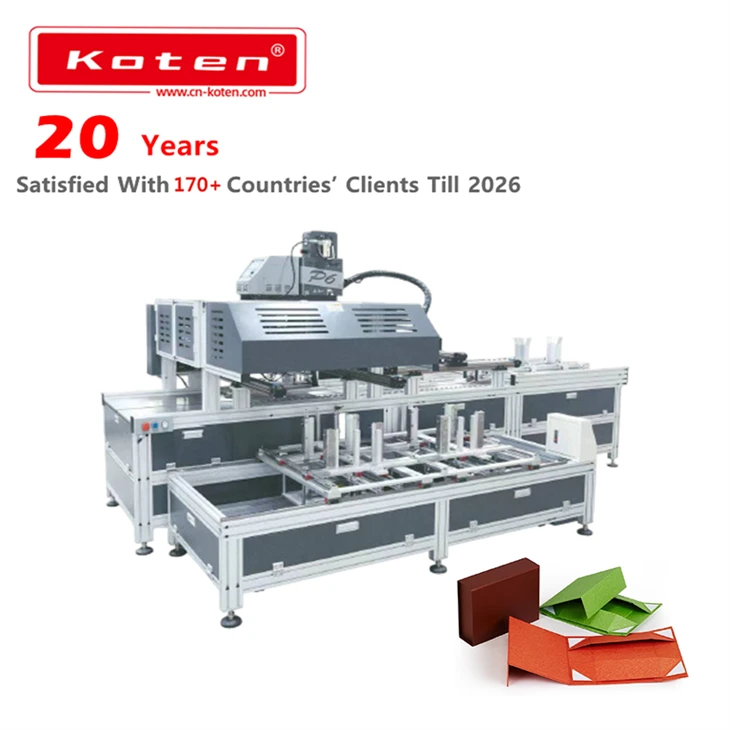

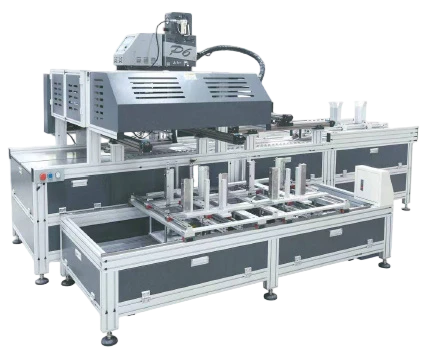

ZH‑500Z automatic collapsible box case & wings assembly machine is dedicated equipment for mass‑producing foldable rigid packaging boxes. It adopts downward suction feeding, Panasonic servo‑driven gluing and positioning system together with four‑station lifting table feeding structure.
The machine effectively avoids double‑sheet feeding and surface scratching of box shells. Gluing paths can be freely set on the touch‑screen, with optional hot‑cold dual‑glue system to improve bonding strength and anti‑opening performance. It achieves high‑precision positioning up to ±0.1 mm and working speed of 18‑30 pcs/min. Only one operator is required for feeding operation. By replacing feeding modules, it can also realize book box assembly, making the main frame highly universal for diversified box‑making production.
Products Feature
- Downward Suction Feeding Structure: Eliminates double / multi‑sheet feeding and prevents scratches on box shell surfaces.
- Panasonic Servo Gluing Control: Gluing trajectories freely adjustable via touch‑screen; optional hot‑cold dual‑glue system for stronger adhesion and anti‑opening effect.
- Four‑station Lifting Table Feeding: Single‑operator feeding for both box cases and side wings, supports non‑stop running to save labor and boost output. Main machine frame is universal; book‑box assembly is available by changing feeding modules.
- High‑precision Servo Positioning: Adopts Japanese Panasonic servo motor for positioning, positioning accuracy reaches ±0.1 mm for consistent high‑quality finished boxes.
- Wide Size Adaptability: Covers broad dimension range for box cases and wings, fits multiple specifications of collapsible rigid boxes.
Main Paramater
|
Model |
ZH-500Z |
|
Machine dimension |
3600×2000×2000mm |
|
Machine weight |
800KG |
|
Speed |
18-30pcs/min |
|
Max case size |
900×450mm |
|
Min case size |
90×95mm |
|
Max wing size |
500×120mm |
|
Min wing size |
100×30mm |
|
Wing center bar length size |
65-400mm |
|
Precision positioning |
±0.1mm |
|
Power supply |
AC220V |
|
Power |
8KW |
|
Air pressure |
0.6Mpa |
Application
This machine is designed for mass‑production of high‑end collapsible rigid boxes for the packaging industry:
‑ Luxury gift boxes, cosmetic boxes, jewelry boxes and premium retail packaging
‑ Flat‑pack collapsible rigid boxes that can be folded flat for shipment and storage
‑ Suitable for rigid‑box factories, printing & post‑press plants and packaging enterprises focusing on high‑grade box orders
It handles face paper of 80‑200 g/m² and cardboard thickness from 0.5‑3 mm, covering a wide range of finished collapsible box dimensions.
Company Proflie
Installation
The above price not contain the installation and training charge, if customers request our engineer for this service, customers should pay the flight tickets, hotel, food and daily wage.
Guarantee
One year, within one year, the damaged spares by nature can be changed for free.
